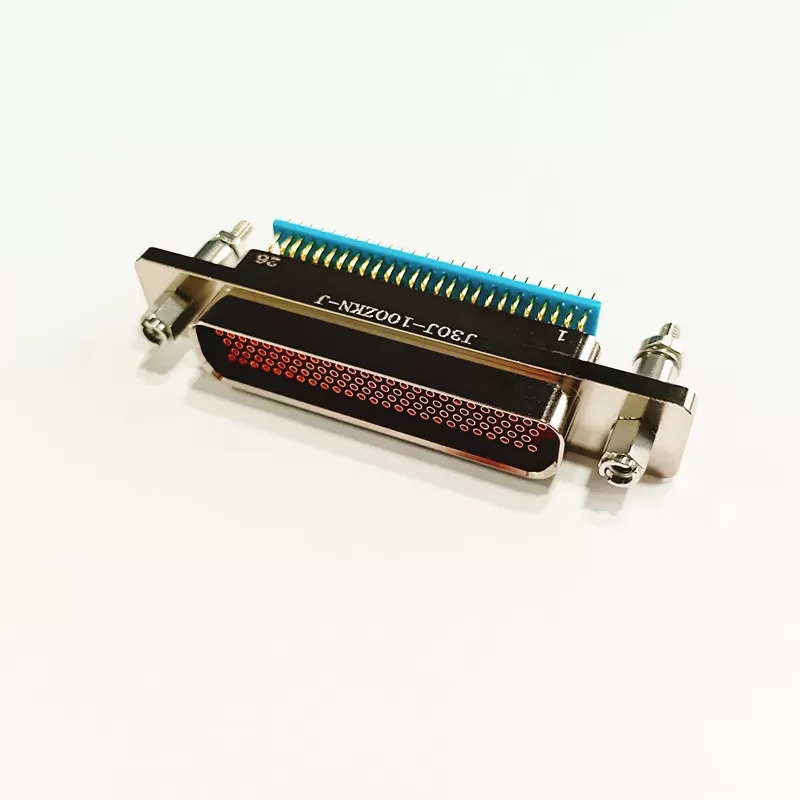

Key Types of Rectangular Connectors: Features & Applications

Published On: January 8, 2026

Introduction


Rectangular connectors are vital components across military, aerospace, industrial automation, medical, and consumer electronics industries. Compared with circular connectors, they offer superior compactness, higher contact density, and better mechanical stability for specific scenarios. This article outlines 10 core types of rectangular connectors, along with their key features, typical applications, and critical selection criteria.

10 Core Types of Rectangular Connectors


  1. Board-to-Board Rectangular Connectors

    Directly connect PCBs without wiring, ideal for compact, high-reliability devices.
    • Features: High-density pins, surface-mount/through-hole designs, high-speed data support
    • Applications: Computers & data centers, telecommunication equipment, consumer electronics

  2. Wire-to-Board Rectangular Connectors

    Link discrete wires to PCBs, ensuring robust power and signal transmission.
    • Features: Secure locking mechanisms, single/multi-row configurations, easy mating/unmating
    • Applications: Industrial control systems, automotive electronics, medical devices

  3. Wire-to-Wire Rectangular Connectors

    Enable cable-to-cable connections, suitable for modular designs requiring frequent disassembly.
    • Features: Polarized housings, optional high current capacity, ruggedized versions for harsh environments
    • Applications: Aerospace & defense, robotics & automation, transportation systems

  4. Power Rectangular Connectors

    Designed for high-current and high-voltage transmission, tailored for industrial heavy-duty use.
    • Features: Large contact surfaces (low resistance/heat), modular design, high-temperature/corrosion-resistant materials
    • Applications: Power distribution units, electric vehicles & charging stations, renewable energy systems

  5. RF Rectangular Connectors

    Optimized for high-frequency signal transmission with minimal loss and interference.
    • Features: Shielded housing (anti-EMI), precision contacts, coaxial/differential pair configurations
    • Applications: Satellite communication, radar systems, wireless base stations

  6. Military-Grade Rectangular Connectors

    Built to withstand extreme environmental conditions, compliant with MIL-Spec standards (e.g., MIL-DTL-83513, MIL-DTL-38999).
    • Features: Hermetic sealing options, high shock/vibration resistance, secure locking
    • Applications: Avionics & defense communication, battlefield electronic systems, space & satellite equipment

  7. Modular Rectangular Connectors

    Customizable by integrating signal, power, and data transmission functions into one unit.
    • Features: Configurable contact arrangements, hot-swappable designs, scalable for expansions
    • Applications: Industrial automation, medical diagnostic equipment, telecommunications infrastructure

  8. High-Speed Data Rectangular Connectors

    Support low-latency, high-bandwidth data transmission with minimal signal degradation.
    • Features: Differential signal pairs (low crosstalk), EMI shielding options, high pin count for complex data
    • Applications: Data centers & cloud computing, high-performance computing (HPC), automotive infotainment systems

  9. Waterproof & Sealed Rectangular Connectors

    Rated for resistance to moisture, dust, and harsh outdoor/marine conditions (IP67/IP68).
    • Features: IP67/IP68 ratings, corrosion-resistant materials (stainless steel, anodized aluminum), sealed gaskets/O-rings
    • Applications: Marine & offshore electronics, outdoor surveillance systems, wet-environment industrial machinery

  10. Automotive Rectangular Connectors

    Engineered to withstand high temperatures, vibrations, oil, and chemicals in vehicle environments.
    • Features: High vibration resistance, 150°C temperature tolerance, compact/lightweight designs
    • Applications: Engine control units (ECUs), EV battery systems, advanced driver-assistance systems (ADAS)


Key Considerations for Selecting Rectangular Connectors


When choosing a rectangular connector, prioritize the following critical factors:

  • Current and voltage ratings (match required power levels to avoid overheating)
  • Environmental conditions (select sealed/ruggedized versions for moisture, dust, or chemical exposure)
  • Signal integrity (opt for shielded connectors with low insertion loss for high-speed data applications)
  • Mating cycles (choose high-durability models for frequent connection/disconnection)
  • Size and space constraints (select compact designs for limited-space scenarios)
  • Compliance standards (ensure alignment with MIL-Spec, IP ratings, or automotive certifications)

Conclusion


Rectangular connectors are versatile, essential components in modern electronic and industrial systems. With 10 core types available, the optimal selection depends on specific application requirements, including power handling, data transmission speed, environmental resistance, and mechanical durability. By understanding the key features and use cases of each type, engineers and designers can make informed decisions to enhance system performance, reliability, and longevity.
